Burning biomass horizontal heat carrier heat conduction oil furnace of tpyeYLW

產品特點介紹 Features of the product introduction
    有機熱載體鍋爐是以生物質為燃料，導熱油為熱載體，利用循環泵，強制導熱油進行液相循環，再將熱能輸送給用熱設備后，再返回加熱爐重新加熱的直流式特種鍋爐。
    (1)能在較低的運行壓力下，獲得350℃以下的工作溫度，具有低壓高溫的技術特性；
    (2)可實現穩定的加熱和精確的溫度調節，提高加熱產品質量；
    (3)完善的運行控制和安全檢測裝置，操作方便，安全可靠；
    (4)閉路循環，液相輸送熱能，熱損失小，效果顯著，效果好；
    (5)配置水管余熱蒸汽鍋爐、蒸汽發生器，實現一爐二用，效果顯著。
    各類排放指標均低于國家（GB13271-2001）《鍋爐大氣污染物排放標準》規定，是替代電、燃油、燃氣、燃煤蒸汽鍋爐的佳產品。生物質鍋爐運行成本低，比燃油、燃氣、電加熱鍋爐可節省40%-60%，比燃煤節省5%-10%運行成本，是一種高效的熱能設備。
    有機熱載體爐是以生物質為燃料，導熱油(導生)為熱載體，利用循環泵，強制導熱油進行液相循環，再將熱能輸送給用熱設備后，再返回加熱爐重新加熱的直流式特種鍋爐。

        Organic heat carrier boiler using the Biomass as fuel, Heat conduction oil as heat carrier, using the circulating pump, forced heat conduction oil for liquid circulation, after transfer heat to heat equipment, it can send them back to the reheating furnace.
        (1) Can run at lower pressure, working temperature below 350 ℃, high temperature low pressure the technical characteristic；
        (2) Can realize the stable heating and precise temperature control, improve the heating quality of the product；
        (3) Perfect running control and safety test device, convenient operation, safe and reliable；
        (4) Closed-circuit circulation, liquid phase transfer heat energy, small heat loss, energy-saving effect is remarkable, environmental protection effect is good；
        (5) Configuration pipe waste heat steam boiler, steam generator, the realization of two with a furnace, energy saving effect is remarkable；
        Various types of emissions are below the national standard(GB13271-2001), it can replace the electric boiler, fuel oil boiler, gas boiler.Biomass pellet boiler can save more cost of you, it can save more than 40% - 60% cost of the electric boiler, fuel oil boiler and gas boiler.Organic heat carrier boiler using the Biomass as fuel,  save 5%-10% running cost than coal, the heat energy is a kind of high efficiency and energy saving environmental protection equipment.
        Heat conduction oil as heat carrier, using the circulating pump, forced heat conduction oil for liquid circulation, after transfer heat to heat equipment, it can send them back to the reheating furnace.

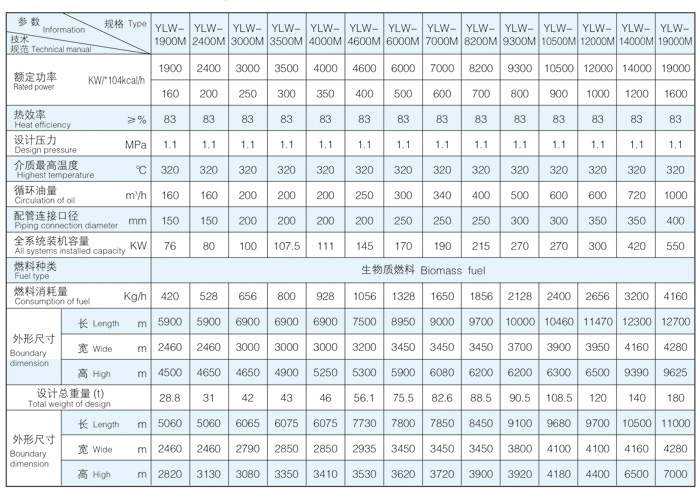

技術參數 Technical information

注：*本公司不斷追求技術創新及產品改進，產品的規格、技術參數及外型如有改動恕不另行通知。

PS: Our company always improve the products, if something is change in a hurry, we can't show it in our catalogue, thanks for your understanding.
